MX FUEL 3600W/1800W

PORTABLE POWER SUPPLY

MXF PS-0
MX FUEL ROCKET TOWER LIGHT/CHARGER

THE NEW WAY TO LIGHT THE SITE

Our MX FUEL ROCKET Tower Light/Charger is the new way to light the site. It’s the most portable 10’ light for both indoor and outdoor use. The tower light provides up to 27,000 lumens of task and area lighting and withstands the harshest jobsite environments. The portable light tower provides you with the most portable and highest output cordless light on the market for remote applications and early phase construction. The 8” all-terrain wheels ensure you can easily roll the work light across uneven ground, whether it needs to be moved across rough terrain during early phase construction or across pan decking for early morning concrete pours. The telescopic lighting tower can be set up in seconds to a max height of 10’ with a motorized mast and collapses back down to 44” for easy transportation and storage. Once it is in place, 4 outriggers can quickly be deployed to provide more stability on uneven surfaces. The four multidirectional LED light heads give you the ability to cast up to 27,000 lumens of TRUEVIEW High Definition Output in several directions. The LEDs never need to be replaced and are backed by our limited lifetime warranty. When powered by our MX FUEL REDLITHIUM XC406 battery pack, the jobsite light tower runs up to 10 hours on a single charge. It can also be plugged into an extension cord for all-day operation as well as charge any MX FUEL REDLITHIUM battery pack. It is compatible with all MILWAUKEE® MX FUEL REDLITHIUM batteries giving you the hardest working and most reliable power for equipment. The MX FUEL ROCKET Tower Light/Charger is ONE-KEY Compatible. You can customize, track, manage and secure your equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If the light tower is ever lost or stolen you can prevent tampering with remote lockout capability.


POWER MORE ON DEMAND


PORTABLE POWER ANYWHERE


MORE EFFICIENT POWER


RUN-TIME WITH 2 XC BATTERIES

The CP203 Battery recharges in 45 Minutes. The XC406 Battery recharges in 90 Minutes.

270 CUTS
305mm MITER SAW
1,210 CUTS
190mm CIRCULAR SAW
(55) 19mm THREADS
STATIONARY PIPE THREADER
6 M18B5 BATTERIES
W/ RAPID CHARGER
UP TO 8 HOURS
(4) PERSONAL DEVICES
40 HOT MEALS
1000W MICROWAVE

MX FUEL TECHNOLOGY

1
2
3
Click a Number for Details

SPECIFICATION

Product version featured may vary by region

    220-240V, 15A

    Power everything from aggressive 15A tools to personal devices.

    Single or Dual Battery Operation

    Power with a single battery for lightweight portability, or two MX FUEL REDLITHIUM batteries for double the run-time.

    Lockable Battery Bays

    Keep your batteries safe and secure on site and on the go.

    M18/M12 Charger Screw Mounts

    Mount M18 & M12 chargers directly to the back for convenient carrying and storage.

    Integrated MX FUEL Battery Charger

    Easily charge one or two MX FUEL REDLITHIUM batteries by plugging in the provided charge cord or an extension cord directly into the MX FUEL CARRY-ON Power Supply.No external charger needed.

    BATTERY System

    MX FUEL

    Running Wattage 1800W
    Starting Wattage 3600W
    Outlet Type (2) 220-240V, 15A
    Sound Level 60 dB(a)
    Integrated Charger YES – Sequential
    Push Button Activation YES
    Weight – (2) MXF XC406 Batteries 27.7kg
    Weight – Without Batteries 18.6kg
    Ground Fault Isolated YES
    Intended for (1) 15 Amp Tool
    Recommended Battery MXF XC406
    Application/ EquipmentEstimated Running
    Watts*

    Estimated Starting
    Watts*
    Circular Saw – 190mm14002300
    Miter Saw – 254mm18001800
    Air Compressor – ¼ HP9701600
    Work Light10001000
    Drill – 10mm6001000
    Reciprocating Saw9601920
    M18 Rapid Charger330330
    Radio5050
    Lights (4qty X 75 W)300300
    Microwave10001000
    TV200200
    Portable Fan40120
    Laptop150150
    *Wattages listed are approximate. Refer to tool or appliance for actual wattage.


    COMMONLY USED WITH

    MX FUEL REDLITHIUM XC406 BATTERY PACK
    MX FUEL REDLITHIUM CP203 BATTERY PACK

    EQUIPMENT REDEFINED
    TRADE FOCUSED
    SYSTEM WIDE

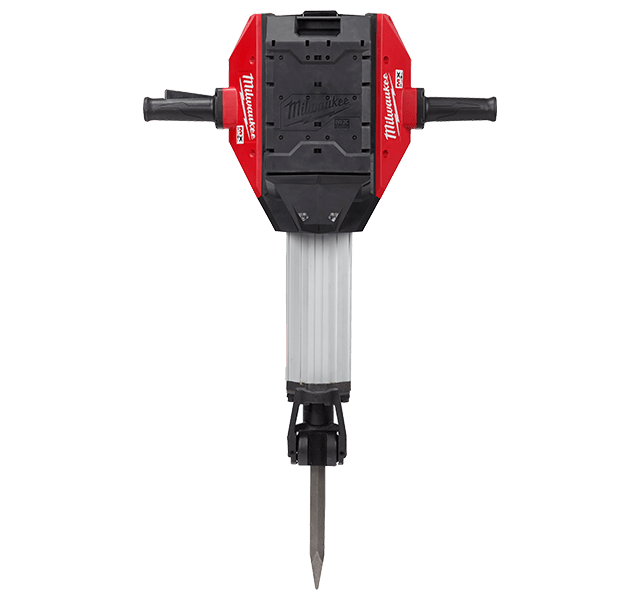

    MX FUEL 28 MM HEX BREAKER
